Medix Specialty Vehicles

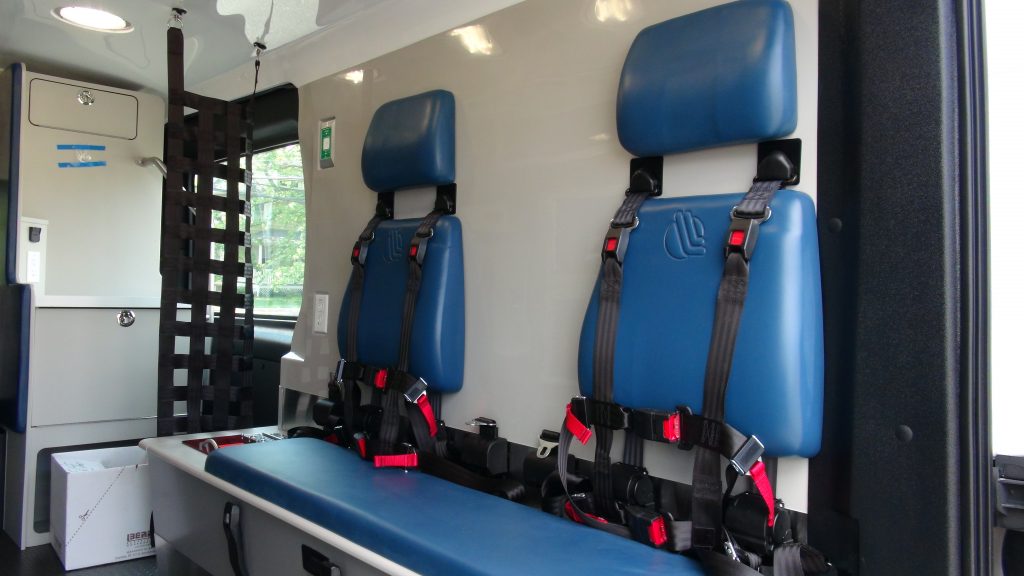

Medix Specialty Vehicles is committed to producing the most cost-effective, high quality ambulances in the industry.  Engineering one of the strongest extruded structural frames on the market today, and by conducting side impact, corner, and rollover testing, Medix has demonstrated their commitment to safety.  One key feature of the Medix brand is their exclusive vacuum insulation process, resulting in one of the quietest modules in the industry.  Utilizing a unique manufacturing process, Medix is able to customize a vehicle to suit your needs with features including an aluminum squad bench, composite cabinet walls, and a standardized electrical system.

Type III

Popular with private and municipal organizations as well as BLS and ALS Fire, EMS, and Hospital services, Medix Type III ambulances include the largest models offered by Medix Ambulances.

Model Chassis Wheelbase Module Length Module Width Aisle Width Module Headroom GVWR
RP90ES Ford E-350 138 146 90 45 68 11500
  Chevy G-3500 139 146 90 46 68 12300
Metro Express 153 Ford E-350 138 153 94 46 70 11500
  Chevy G-3500 139 153 94 46 70 12300
Metro Express 166 Ford E-450 158 166 94 50.5 72 14500
  Chevy G-4500 159 166 94 50.5 72 14200
Metro Express MN86 Sprinter 144 142 86 44 (40.5) 68 11030
MSV-II 170 Ford E-450 158 170 96 49 72 14500
  Chevy G-4500 159 170 96 49 72 14200



Type II

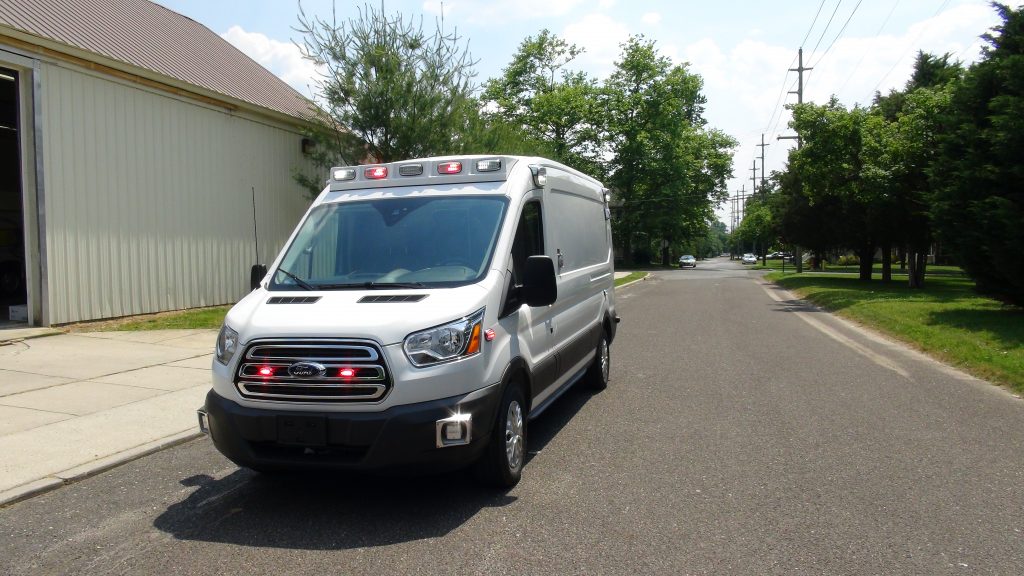

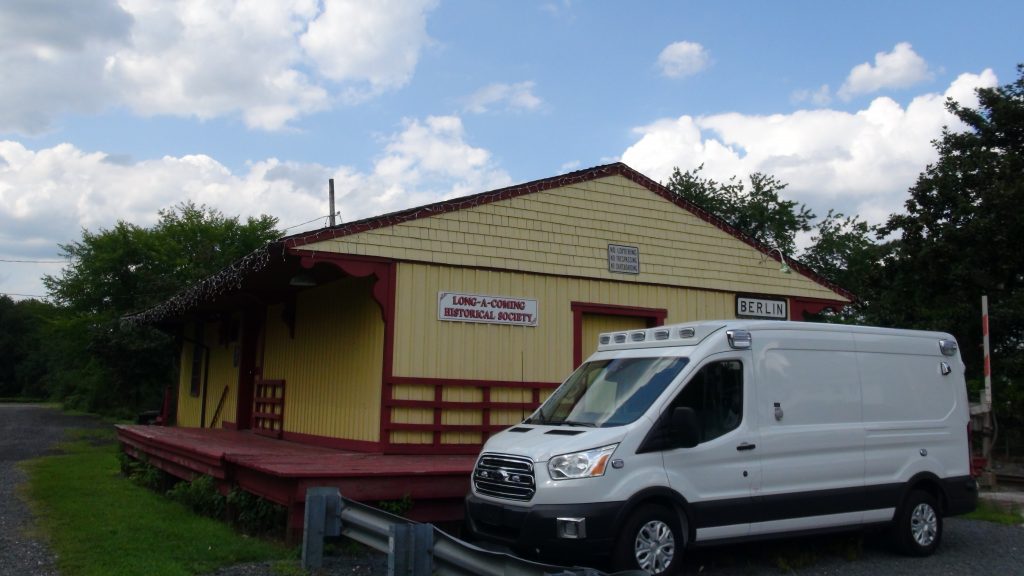

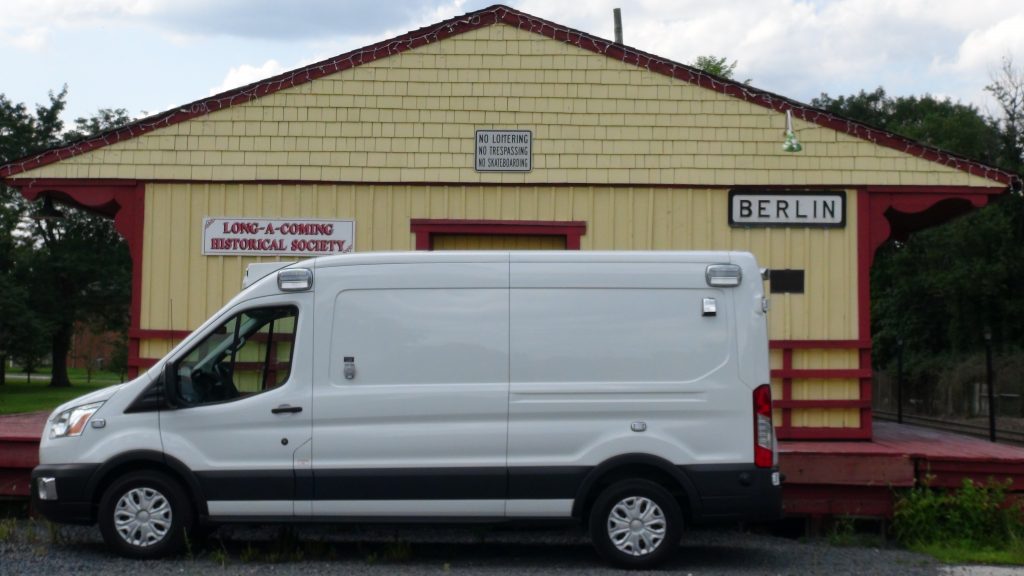

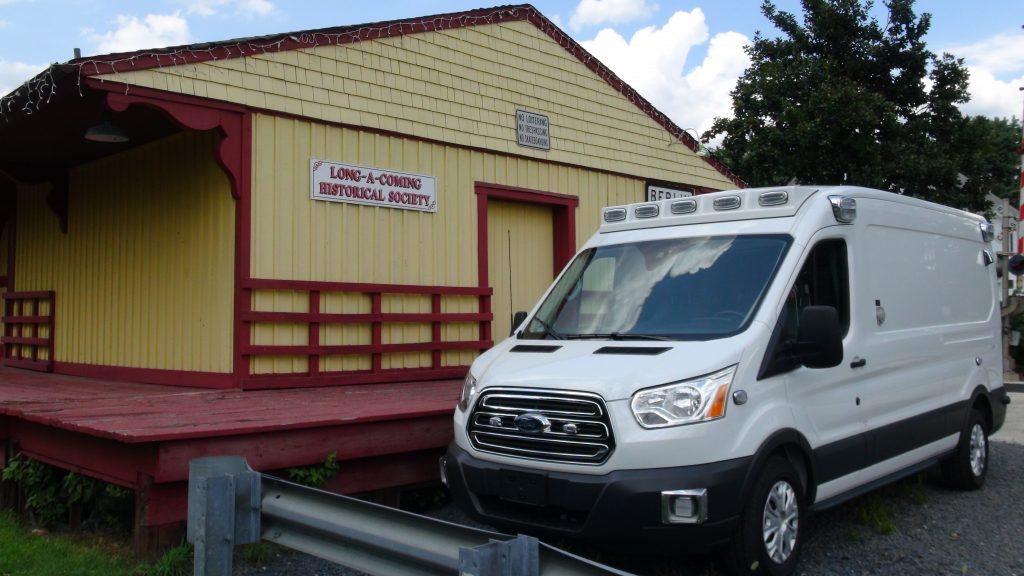

The Medix Type II Ambulance provides the best configuration and operational values in the industry. The workhorse of the Medix line-up, the Type II comes as a Ford (Transit) or a Sprinter (Mercedes Benz).

Model Chassis Wheelbase Overall Width Overall Height Aisle Width Compartment Headroom GVWR
SRH-148 Transit 148 79 100.7 37 68.5 9000
  Sprinter 144 79.7 103.6 38 75 8550



Type I

Medix Type 1 ambulances are built with great care to meet high quality specifications and are the largest models offered by Medix Ambulances.

Model Chassis Wheelbase Module Length Module Width Aisle Width Module Headroom GVWR
Metro Express 153 Ford F-350 169 153 94 46 70 13300 (14000) 4×4
  Chevy C/K-3500 165 153 94 46 70 13200
MSV-II 157 Ford F-450/550 169 157 96 46 72 16500 (18000)
MSV-II 170 Ford F-450/550 169 170 96 50 72 16500 (18000)
